Gravitate G5 Floorline Bed

SKU: ICG5

POA

Ultra Low Floorline Bed.

  • Description

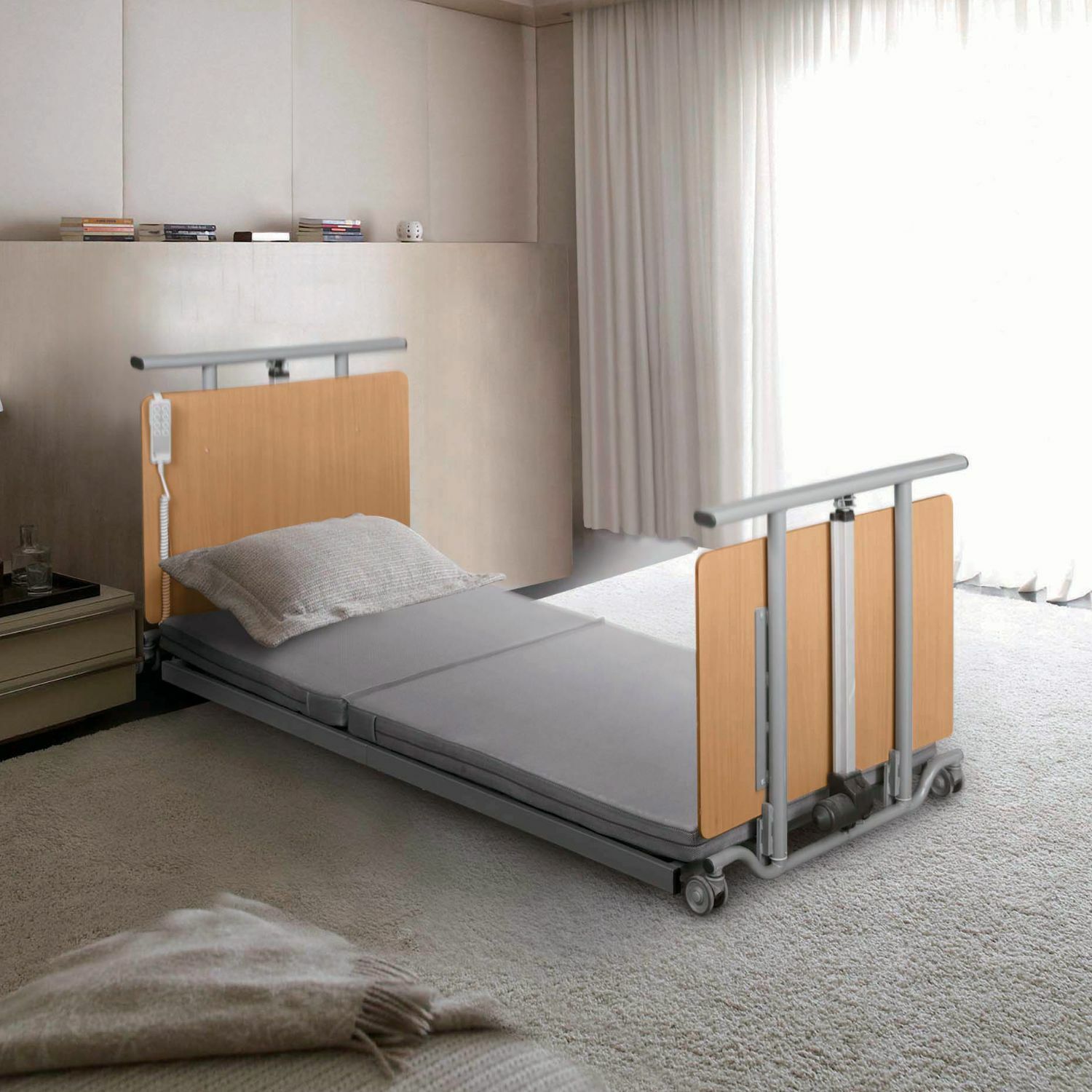

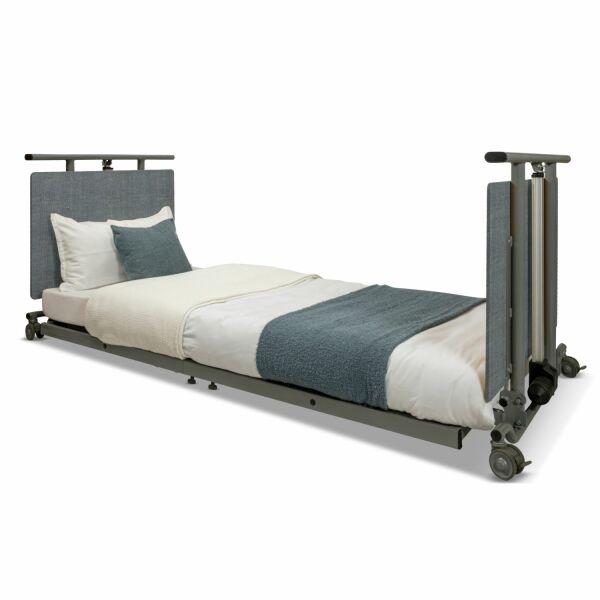

    Icare Gravitate G5 floorline bed is the lowest bed in the Icare range. The bed frame can be lowered to floor level. This prevents falls and is suitable for homecare and age care use for users at risk of falls.



    Soft Touch Option - upholstered in choice of fabrics.

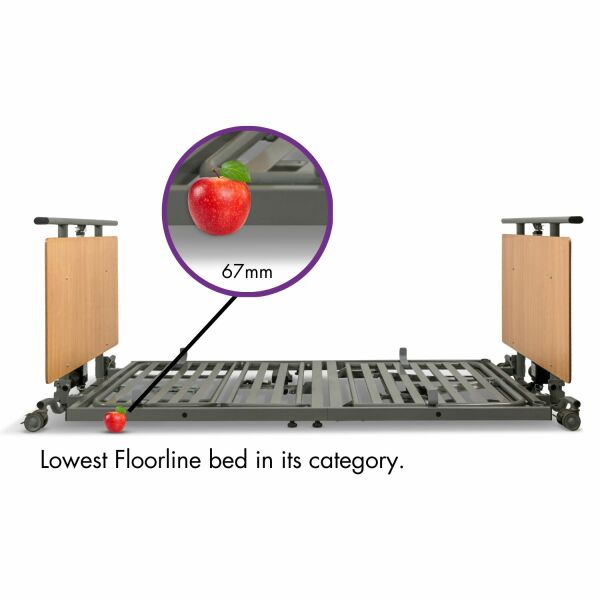

    • Floorline lower than an apple at 67mm.
    • Emergency battery back-up lowering.
    • Five position vascular support function.
    • 190kg Safe Working Load
    • 4 Section Fold-up Design
    • Wipeable hand control with full or semi lock out.
    • Wall Buffers for asset protection.



    Download Image Library



    Note: All rails and optional extras must be ordered separately. Images indicative only.

  • Warranty

    Gravitate Care Beds

    Icare Medical Group warrants the IC333 Height Adjustable Bed and parts to the Customer against defective materials and defective workmanship, from date of invoice.

    • Steel Frame of Bed - 10 Year Limited Warranty
    • Actuators - 2 Year Limited Warranty
    • Control Box - 2 Year Limited Warranty
    • Castor wheels - 2 Year Limited Warranty
    • Hand Piece - 2 Year Limited Warranty
    • Upholstery and Fabric - 2 Year Limited Warranty



  • More information

    Colors between imagery and actual product may vary, due to manufacturing variations.

  • Product Files

Choose an option
Long Single bed image

Long Single

2030 x 900mm

ICG5LS
King Single bed image

King Single

2030 x 1070mm

ICG5KSAO
Quantity
Long Single bed image

Long Single

2030 x 900mm

ICG5LS
King Single bed image

King Single

2030 x 1070mm

ICG5KSAO
Gravitate: Beech (Timber)

Gravitate: Beech (Timber)

Onyx

Onyx

Silver

Silver

Smoke

Smoke

Stone

Stone

Vinyl Dove

Vinyl Dove

Vinyl Ebony

Vinyl Ebony

  • WL - The safe working load is 190kg and includes any model of Icare mattress. User weight 170kg.
  • Hand Piece - Wired stretch cord. Hook attachment. Wipeable. Full and Semi lock out modes.
  • Soft touch fabric - Hard wearing commercial grade fabric. Vinyl is treated with antibacterial properties.
  • Protection class IPX4.
  • Head Lift angle 70º. Knee break angle 30º.
  • Height adjustment - 67mm to 640mm from floor to top of mattress platform.
Head Lift / Back Raise

Head Lift / Back Raise

Hi-Lo Height Adjustable

Hi-Lo Height Adjustable

Knee Break

Knee Break

Trendelenburg & Reverse Trendelenburg

Trendelenburg & Reverse Trendelenburg
